Our cables are also equipped with innovative reflective coatings, which significantly increase work safety in mining excavations. Thanks to this technology, cables are more visible, which minimizes the risk of damage and improves working conditions in difficult, often poorly lit places.
.webp)
Sales sectors
Main Menu - Level 2
Mining and tunnels
TELE-FONIKA Kable is a leader on the Polish market and one of the largest producers in the world in the production of mining cables and wires. Our solutions are widely used in the hard coal, brown coal, copper, salt and other mining raw materials industries. We have gained recognition worldwide thanks to the innovation, reliability and excellent quality of our products.
Kontakt w sprawie asortymentu - kable górnicze EN
Mining Products
Our offer includes a wide range of cables adapted to work in demanding mining conditions. We have several production lines, including continuous vulcanization, twisting and braiding machines, which enable precise production of cables with various parameters. Our production lines are equipped with advanced devices, which allow for full quality control at every stage of production.
Mining cables are characterized by exceptional resistance to extreme conditions prevailing in mines - they are resistant to tearing, abrasion, bending, twisting, the effects of oils, water and chemicals.
We also offer products with a polyurethane coating (TPU), which is distinguished by its special resistance to abrasion, ideally suited to difficult geological conditions.
Our products are dedicated to both underground and open pit mining![Group 8.png [136.63 KB]](https://www.tele-fonika.com/storage/image/core_files/2024/10/15/2bd1d349dca33f5b56dee1c0c4bfb61a/png/tfkable/preview/Group%208.png)
Our products are dedicated to both underground and open pit mining.
Our products are dedicated to both underground and open pit mining.
Shaft cables
Dedicated for applications in mines, where they are used in devices for vertical transport of materials. They are characterized by high tensile strength and high flexibility, which ensures their reliability during intensive use.
Power cables
Designed to supply electricity to industrial equipment such as mining machines, drilling equipment or lighting systems. We offer cables with various technical parameters, including high-power
Trailing cables
Of special construction, enabling their use in devices that move in different directions, e.g. in conveyor belts. Our trailing cables are resistant to stretching and also provide full reliability in an environment with the presence of chemicals or water.
Cables for reels
Designed for reels, they are used in applications where frequent change of cable length is required depending on needs. They are characterized by high resistance to repeated winding and unwinding and to dynamic mechanical loads.
TSCGEWOU.jpg)
Cables for powering mobile devices
Used in mines, where electrical devices such as cranes, trolleys or mining machines must be powered continuously and reliably, regardless of the changing position of these devices. These cables are resistant to bending, twisting and the effects of oils and chemicals.
Reflective cables
A solution that significantly increases the level of safety in mines and other difficult conditions. Thanks to the use of reflective coatings, cables are more visible in poor lighting conditions, which reduces the risk of accidents and cable damage.
Telecommunications cables
Used in mining enable the transmission of voice and data signals necessary to manage mining processes. These cables are resistant to mechanical damage and weather conditions, which ensures their reliability in difficult working conditions.
Fiber optic cables
Are a solution for transmitting large amounts of data in mines and other demanding environments. Thanks to their high throughput and resistance to electromagnetic interference, fiber optic cables are an ideal solution in communication, monitoring and automation systems.
TFK - Modern Technologies in Testing
Innovative Reflective Coatings
Compliance with International Standards
Our products meet national and international safety standards, including:
- WUG, EMAG, DIN VDE (Germany),
- BS (Great Britain),
- ICEA and ASTM (USA),
- NFC (France),
- SANS (South Africa),
- AS/NZ (Australia) and others.
As a result, our cables and wires guarantee reliability and operational safety in difficult industrial conditions, ensuring long-term and failure-free operation.

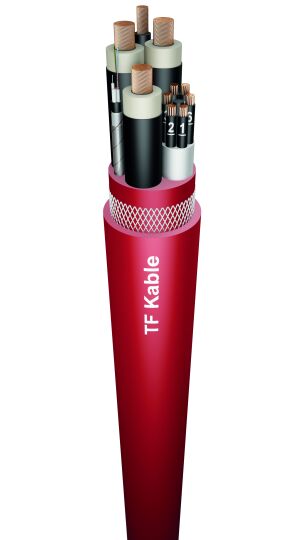

R-(N)TSCGEWOU
- Power Cores: Annealed flexible stranded tin-coated or bare copper conductor, opposite-lay with special length of lay.
- Separator: The wrap of semi-conductive tape between the power conductor and insulation and between earth conductor and semiconductive layer.
- Conductor Screen: Semi-conductive layer of special rubber, manufactured by TFKable.
- Insulation: Special EPDM rubber, halogen-free, lead-free compound, exceeding type 3GI3, manufactured by TFKable.
- Insulation Screen: Strippable layer of extruded semi-conductive compound manufactured by TFKable, composite tinned copper/ polyamide braid.
- Earth Core: Tin-coated or bare copper with extruded special semiconductive rubber compound manufactured by TFKables.
- Control element: Tin-coated or bare copper, EPR insulated conductors screened or wrapped.
- Fiber Optic Module: Identified by color code and covered with buffering tube with filling compound.
- Core Arrangement: Power cores, earth core, control element and FO laid up around conductive filler in the center with anti-adhesion graphite over assembled cores.
- Inner Sheath: Special synthetic thermosetting compound type 5GM3.
- Reinforcing Braid: Braid of polyamide threads between inner and outer sheath layers.
- Outer Sheath: Special synthetic thermosetting compound 5GM5 type, manufactured by TFKable.
SHD-GC
- Power Cores: Conductors - annealed soft drawn extra flexible stranded tinned copper wires.
- Conductor Screen: Semi-conductive tape and semi-conductive layer over the conductor.
- Insulation: Ethylene-propylene rubber (EPR).
- Insulation Shield: Semi-conductive tape and composite tinned copper/polyamide braid (minimum 60% coverage).
- Circuit Identification: Polyamide in the shielding braid, available in black, white, red.
- Grounding: Soft drawn flexible stranded tinned copper wires.
- Ground Check: Yellow PP insulated soft drawn flexible stranded tinned copper wires.
- Assembly: Three power, ground check, and two non-insulated grounding conductors cabled together for a round cable core.
- Separator: Single-faced rubber-filled binder tape over the core.
- Inner Sheath: Extra heavy-duty, high torsion-resistant, integral filled, polychloroprene (CR) thermosetting compound manufactured by TFKable.
- Reinforcing Braid: Braid of polyamide threads between inner and outer sheath. • Outer Sheath: Extra heavy-duty, high torsion-resistant, integral filled, polychloroprene (CR) thermosetting compound manufactured by TFKable.
